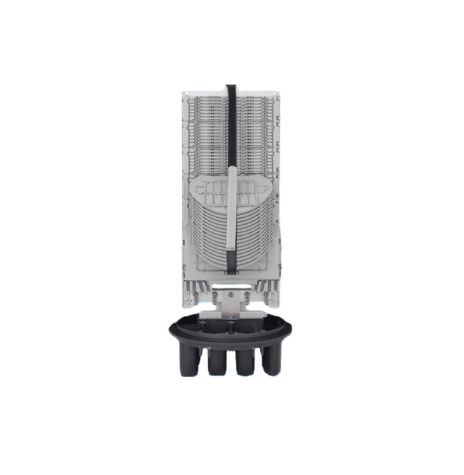

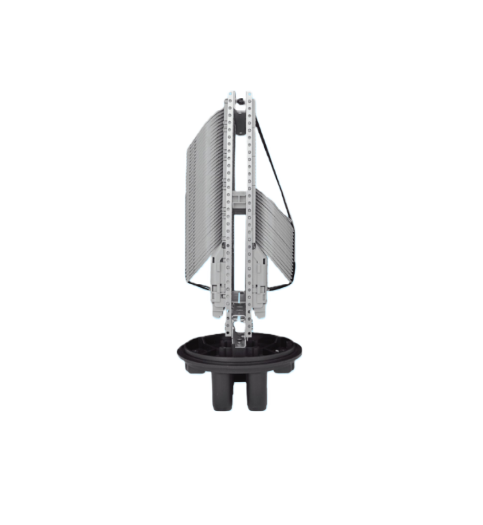

960F Fiber Optic Splice Closures

Modular capacity up to 960 fibers.
May be used for cut, uncut and taut sheath applications.
May be used for all fiber optic cable.
Sheath retention & central strength member fasten system included.
Closure construction and lightweight plastic provides strength and
resistance to chemical and U.V attack.
Installation and reentry with a minimum of tools.
All hardware are included.
Protection class: IP68.
RoHS compliance.

SPECIFICATIONS

Model No. XTNDYT01047 | SSC-576250-6P-576-48T/80T-S12C

Model No. XTNDYT00966 | SSC-576250-6P-288-24T/80T-S12C

Model No. XTNDYT01048 | SSC-576250-6P-144-12T/80T-S12C

Spliced Fiber Storage Capacity: 960 splices (80×12)

Size | Height x Diameter: 576mm x 250mm (w/o clamp), 576mm x 300mm (w/ clamp)

Cable Ports: 1 oval port (30mm), 6 round ports (30mm)
