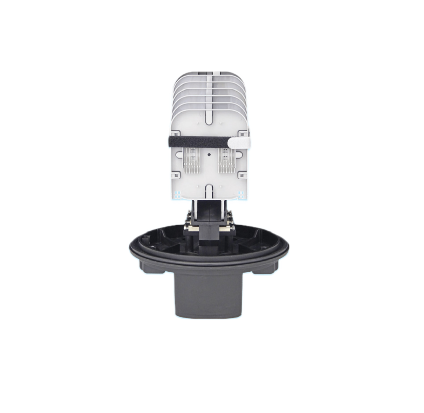

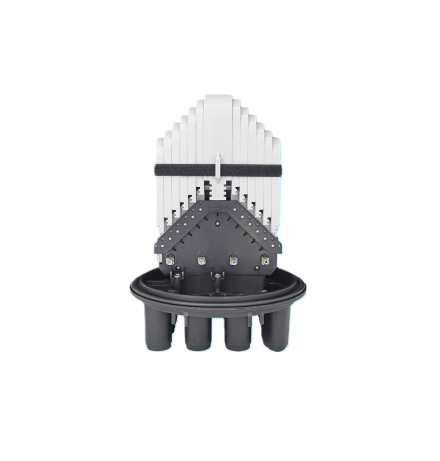

288F-48 Tray Fiber Optic Splice Closures

Modular capacity up to 288 fibers.
May be used for cut, uncut and taut sheath applications.
May be used for all fiber optic cable.
Sheath retention & central strength member fasten system included.
Closure construction and lightweight plastic provides strength and
resistance to chemical and U.V attack.
Installation and reentry with a minimum of tools.
All hardware are included.
Protection class: IP68.
RoHS compliance.

SPECIFICATION

Model No: XTNDYT01057 | SSC-361250-6P-288-12T/12T-T059A

Model No: XTNDYT01058 | SSC-361250-6P-144-6T/12T-T059A

Spliced Fiber Storage Capacity: 288 splices (12×24)

Size | Height x Diameter: 361mm x 250mm (w/o clamp), 361mm x 300mm (w/ clamp)

Cable Ports: 1 oval port (30mm), 6 round ports (30mm)

288F-48 Tray Fiber Optic Splice Closures

Modular capacity up to 288 fibers. May be used for cut, uncut and taut sheath applications. May be used for all fiber optic cable. Sheath retention & central strength member fasten system included. Closure construction and lightweight plastic provides strength and resistance to chemical and U.V attack. Installation and reentry with a minimum of tools. All hardware are included. Protection class: IP68. RoHS compliance.

SPECIFICATION

Model No: XTNDYT01057 | SSC-361250-6P-288-12T/12T-T059A Model No: XTNDYT01058 | SSC-361250-6P-144-6T/12T-T059A Spliced Fiber Storage Capacity: 288 splices (12×24) Size | Height x Diameter: 361mm x 250mm (w/o clamp), 361mm x 300mm (w/ clamp) Cable Ports: 1 oval port (30mm), 6 round ports (30mm)
