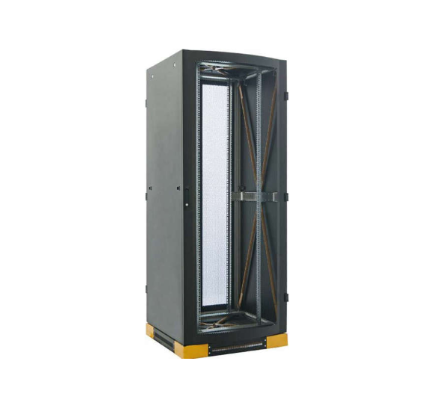

XTND seismic rack cabinets with double perforated doors are designed and manufactured according to structural performance criteria set by Bell Core NEBS for installation in Earthquake Risk Zone 4 areas.
| Material |
Frame ; Anodized aluminum extrusion profiles other parts: 1 , 2 and 2mm steel |
| Colour |
RAL 7035or RAL 9005 |
| Maximum Static Load |
Up TO 2000 KG |
| Finish |
Door, Side panels, Top and Bottom covers: Electrostatic Powder Paint. 19 Mounting rails: Zinc- Plated |
HIGHLIGHTS

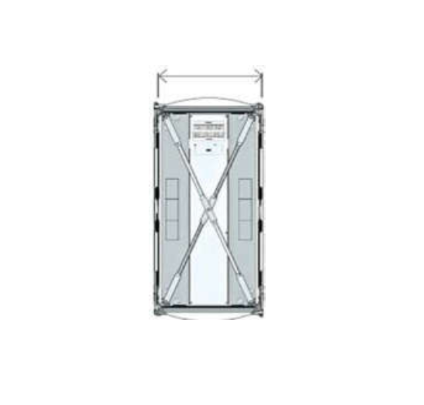

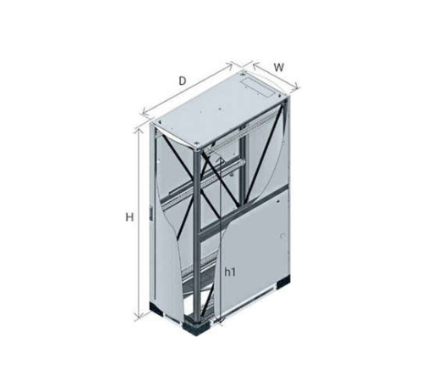

Frame Structure with 2000kg carrying capacity steel
reinforced cross bars in each side of the cabinet including top and
bottom.
2 Pairs of depth adjustabl
Aluminum
e 19 mounting Rails
2 Pairs of Adjustable feet
Front Door with Swinghandle multi point Espagnotette
