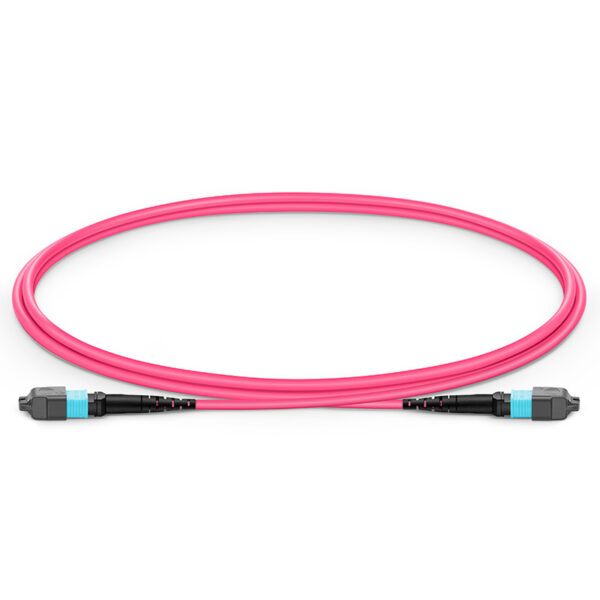

MTP® Jumper, MTP®-12 UPC (Female) to MTP®-12 UPC (Female), 12 Fibers, Multimode (OM4), Plenum (OFNP), 0.35dB Max, Type B, Magenta

Specifications Details
Connector A US Conec MTP® Female (Pinless)
Connector B US Conec MTP® Female (Pinless)
Polish Type UPC to UPC
Glass Fiber Corning ClearCurve®
Fiber Mode OM4 50/125μm
Wavelength 850/1300nm
Fiber Count 12 Fibers
Polarity Type B
Cable Outside Diameter (OD) 3.0mm
Cable Jacket Plenum (OFNP)
Min. Bend Radius (Optical Fiber) 7.5mm
Min. Bend Radius (Fiber Cable) 20/10D (Dynamic/Static)
Connector Durability 500 times
Tensile Strength (Long/Short Term) 80/240N
Insertion Loss 0.35dB Max (0.15dB Typ.)
Return Loss ≥20dB
Attenuation at 850nm ≤2.3dB/km
Attenuation at 1300nm ≤0.6dB/km
Operating Temperature -10 to 60°C (14 to 140℉)
Storage Temperature -10 to 70°C (14 to 158℉)
MTP®-12 Jumper, Female to Female, UPC, 12 Fibers, OM4, OFNP, 0.35dB, Type B MTP® jumpers are ideal for seamless data center upgrades to higher data rates, especially when used alongside trunk cables. These jumpers are commonly utilized for cabinet patching and offer a cost-effective solution to avoid time-consuming field terminations. Designed for high-density fiber patching, MTP® cables help optimize space and reduce cable management challenges in data centers. With support for both MTP®-12 and MTP®-8 fiber systems, these cables are perfect for 8-fiber parallel multimode transceiver applications, such as 40G QSFP+ SR4/CSR4 and 100G QSFP28 SR4 connections. Note: US Conec MTP® connectors are fully compliant with MPO standards and deliver superior performance compared to generic MPO connectors.
