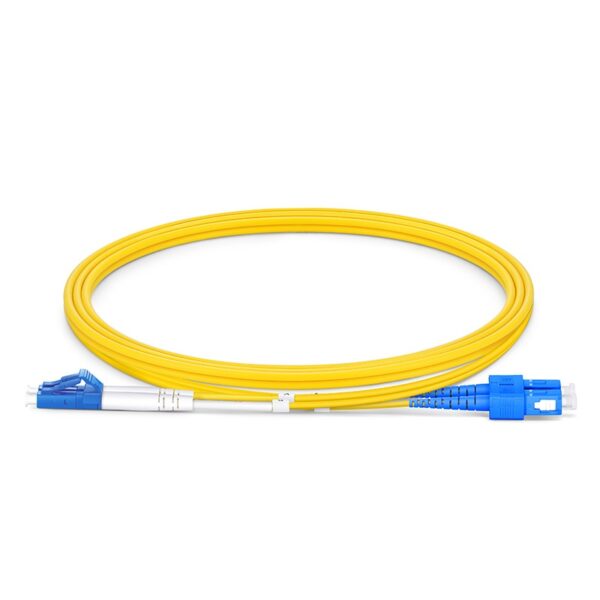

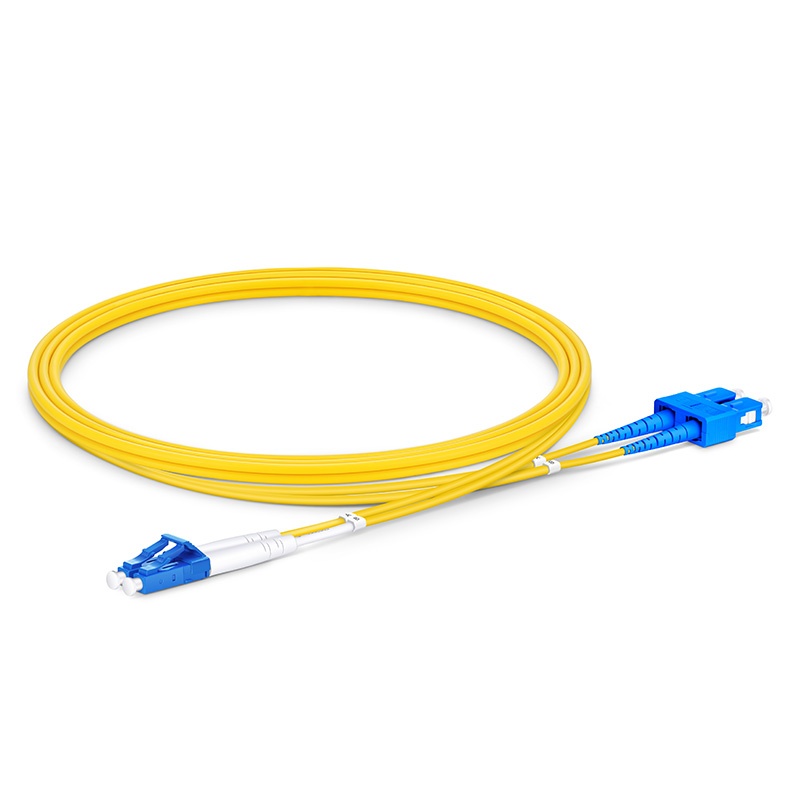

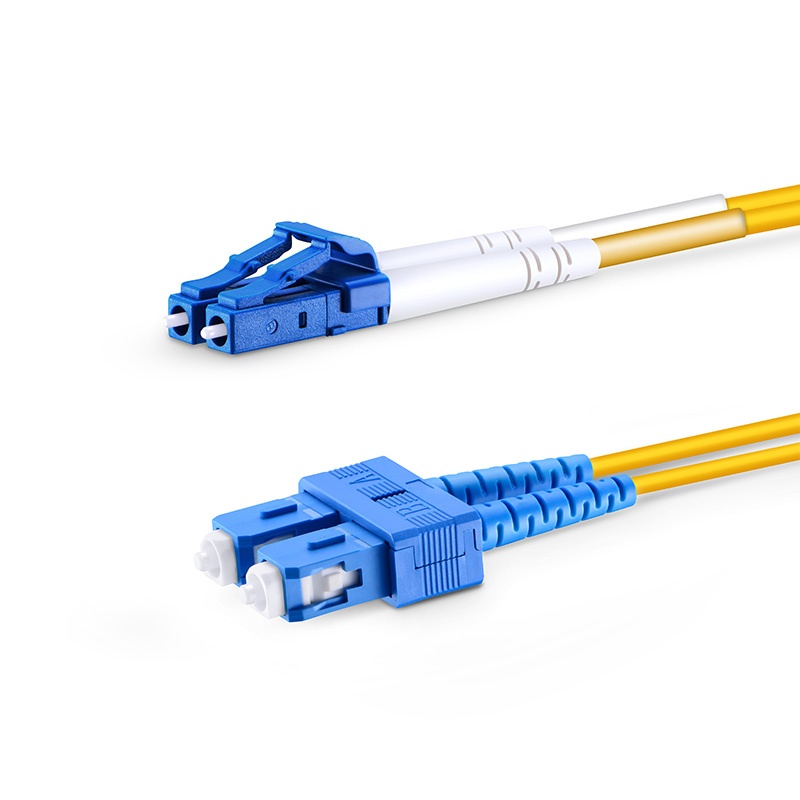

LC UPC to SC UPC, Duplex, 2 Fibers, Single Mode (OS2), Riser (OFNR), 2.0mm, Tight-Buffered, Yellow

Specifications

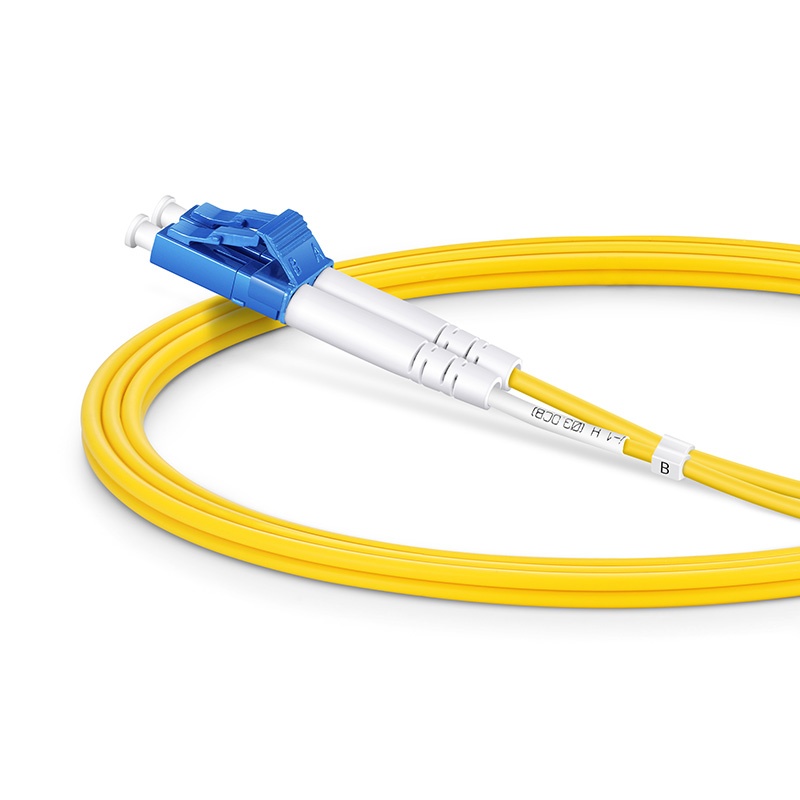

Connector A LC UPC Duplex

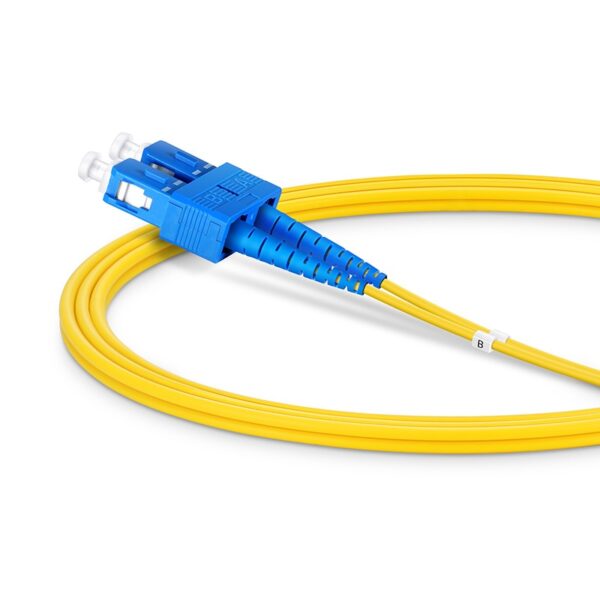

Connector B SC UPC Duplex
Fiber Count 2 Fibers
Fiber Grade G.657.A1 (Compatible with G.652.D)
Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm
Polarity A (Tx) to B (Rx)
Cable Type Tight-Buffered
Cable Outside Diameter (OD) 2.0mm
Cable Jacket Riser (OFNR)
Min. Bend Radius (Optical Fiber) 10mm
Min. Bend Radius (Fiber Cable) 10/5D (Dynamic/Static)
Connector Durability 1000 times
Tensile Strength (Long/Short Term) 90/150N
Insertion Loss ≤0.3dB
Return Loss ≥50dB
Attenuation at 1310 nm 0.36dB/km
Attenuation at 1550 nm 0.22dB/km
Operating Temperature -20 to 70°C (-4 to 158℉)
Storage Temperature -40 to 80°C (-40 to 176℉)

Fiber Patch Cable, LC UPC to SC UPC, Duplex, 2F, OS2, OFNR, 2.0mm

Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.

This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional fiber patch cable and this will make the installation and maintenance more efficient.
