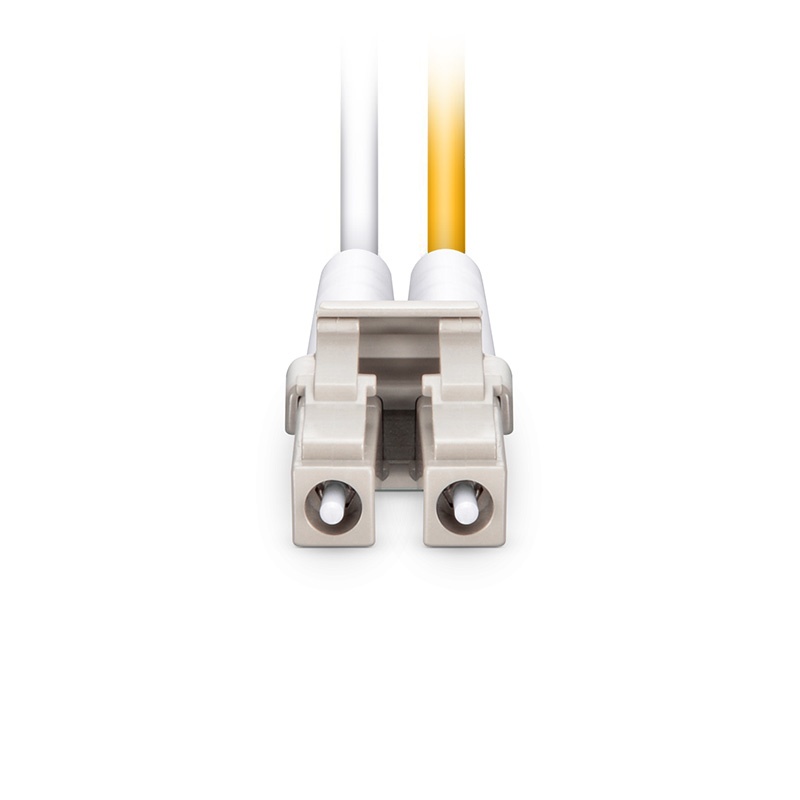

LC UPC to LC UPC, Duplex, 2 Fibers, Multimode (OM3), Riser (OFNR), 2.0mm, Tight-Buffered, Aqua

Specifications Details
Connector Type LC/SC/ST/FC/LSH/MU/MTRJ
Polish Type UPC/APC
Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm
Insertion Loss (dB) ≤0.3dB
Return Loss (dB) UPC≥50dB, APC≥60dB (LC/SC/ST/FC/MU/MTRJ), UPC≥55dB, APC≥75dB (LSH)
Fiber Grade G.657.A1/G.657.A2
Minimum Bend Radius 10/7.5mm
Attenuation at 1310 nm 0.36/0.4 dB/km
Attenuation at 1550 nm 0.22/0.25 dB/km
Cable Jacket Riser (OFNR)/LSZH/OFNP
Cable Outside Diameter (OD) 1.6/1.8/2.0/3.0mm

Fiber Patch Cable, LC UPC to LC UPC, Duplex, 2F, OM3, OFNR, 2.0mm

Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.

This OM3 fiber patch cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10/40/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.

The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient.
