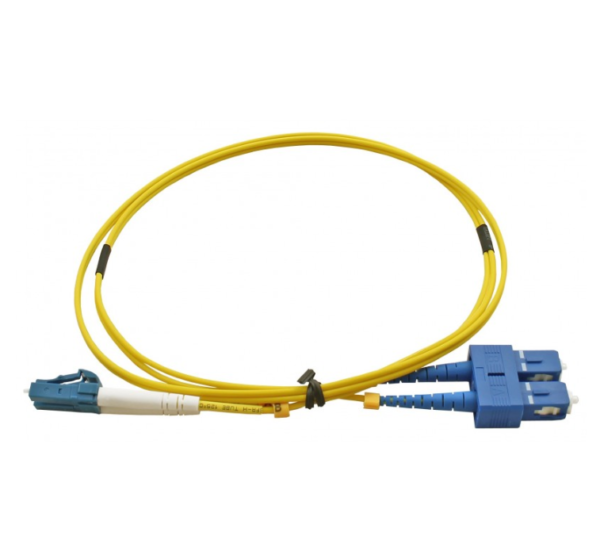

| LC – SC Single Mode (9/125) Duplex Fibre Patch Lead |
Our Singlemode fibre patch leads are manufactured are 100% tested and certified and surpass the high standards required for datacomms and CATV applications.
The leads are manufactured in our advanced fibre termination facility under stringently controlled quality conditions. Our termination facility is one of the largest in the UK providing a high volume and fast turnaround service for any length singlemode lead.
| Singlemode Connector Specifications |
| Connector Specification |
Compliant with IEC 874-14 |
| Ferrule Material |
Full zirconia |
| Insertion Loss |
Max. 0.3dB typical 0.2dB |
| Return Loss |
UPC>50dB, APC > 60dB |
| Operating Temperature |
-40ºC to +85ºC |
