LC APC to LC APC, Simplex, 1 Fiber, Single Mode (OS2), Riser (OFNR), 2.0mm, Tight-Buffered, Yellow

Specifications
Connector A LC APC Simplex
Connector B LC APC Simplex
Fiber Count 1 Fiber
Fiber Grade G.657.A1 (Compatible with G.652.D)
Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm
RoHS Compliancy Status Compliant
Cable Type Tight-Buffered
Cable Outside Diameter (OD) 2.0mm
Cable Jacket Riser (OFNR)
Min. Bend Radius (Optical Fiber) 10mm
Min. Bend Radius (Fiber Cable) 10/5D (Dynamic/Static)
Connector Durability 1000 times
Tensile Strength (Long/Short Term) 60/100N
Insertion Loss ≤0.3dB
Return Loss ≥60dB
Attenuation at 1310 nm 0.36dB/km
Attenuation at 1550 nm 0.22dB/km
Operating Temperature -20 to 70°C (-4 to 158℉)
Storage Temperature -40 to 80°C (-40 to 176℉)

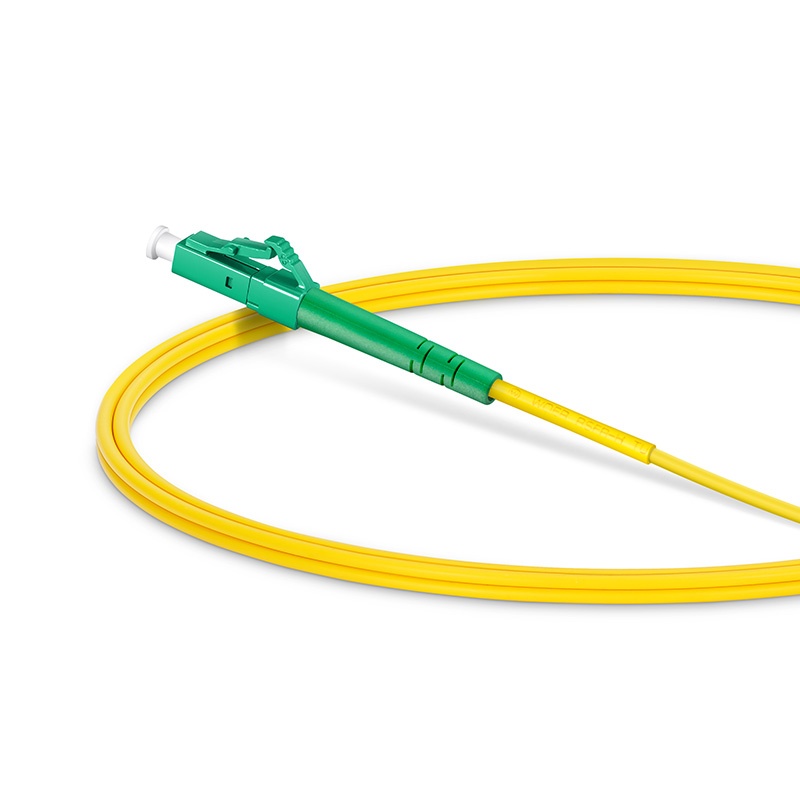

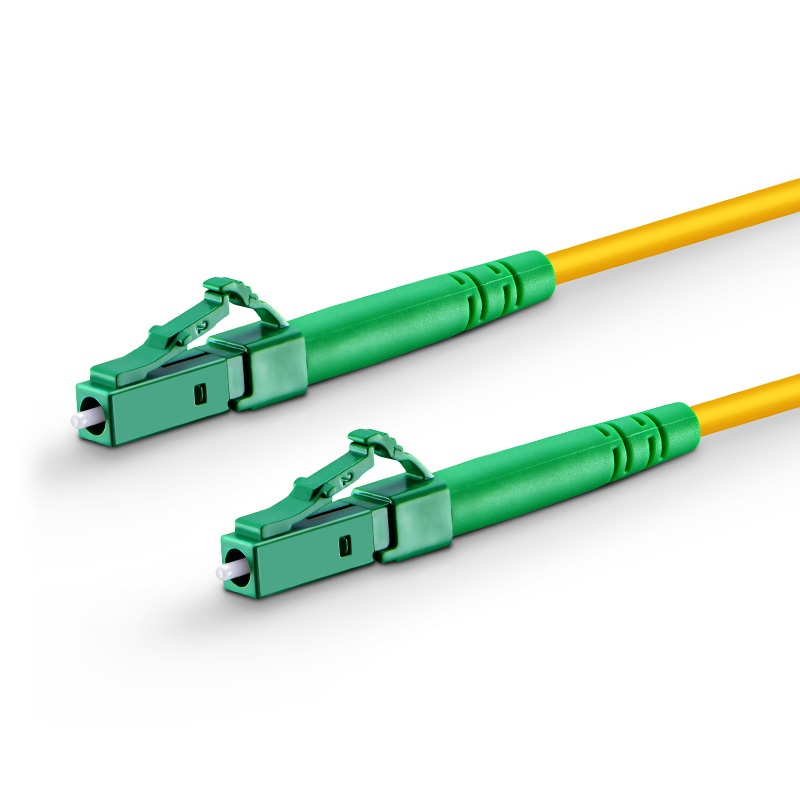

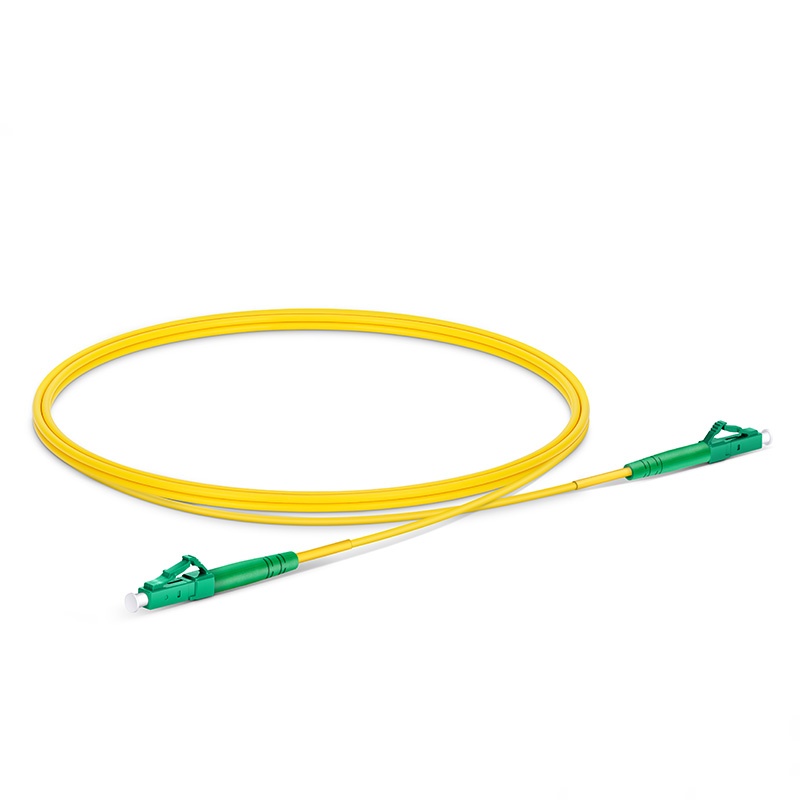

Fiber Patch Cable, LC APC to LC APC, Simplex, 1F, OS2, OFNR, 2.0mm

Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.

This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional fiber patch cable and this will make the installation and maintenance more efficient.
