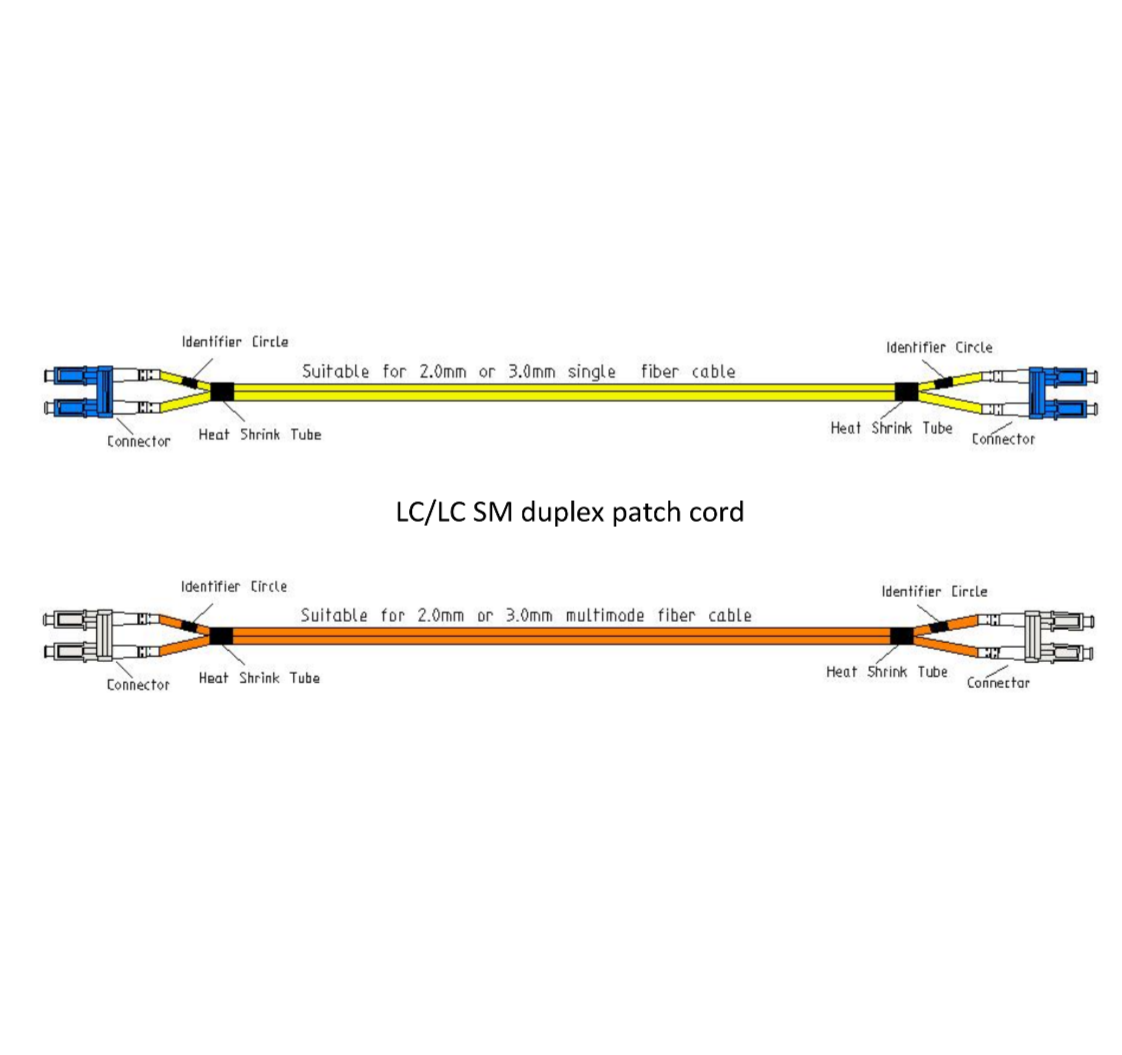

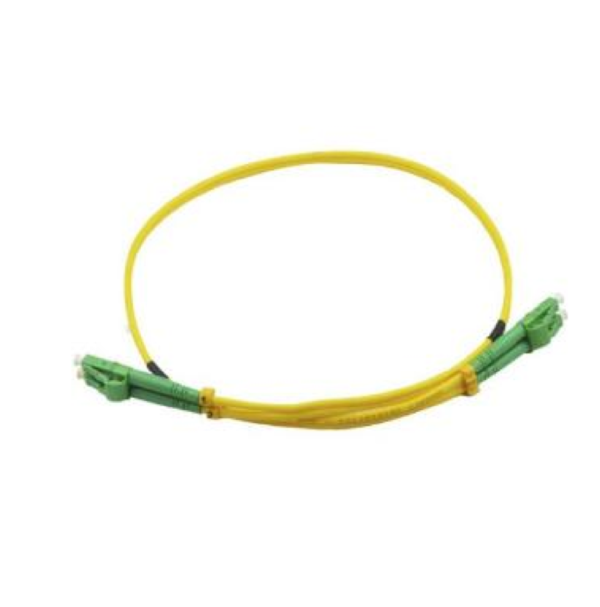

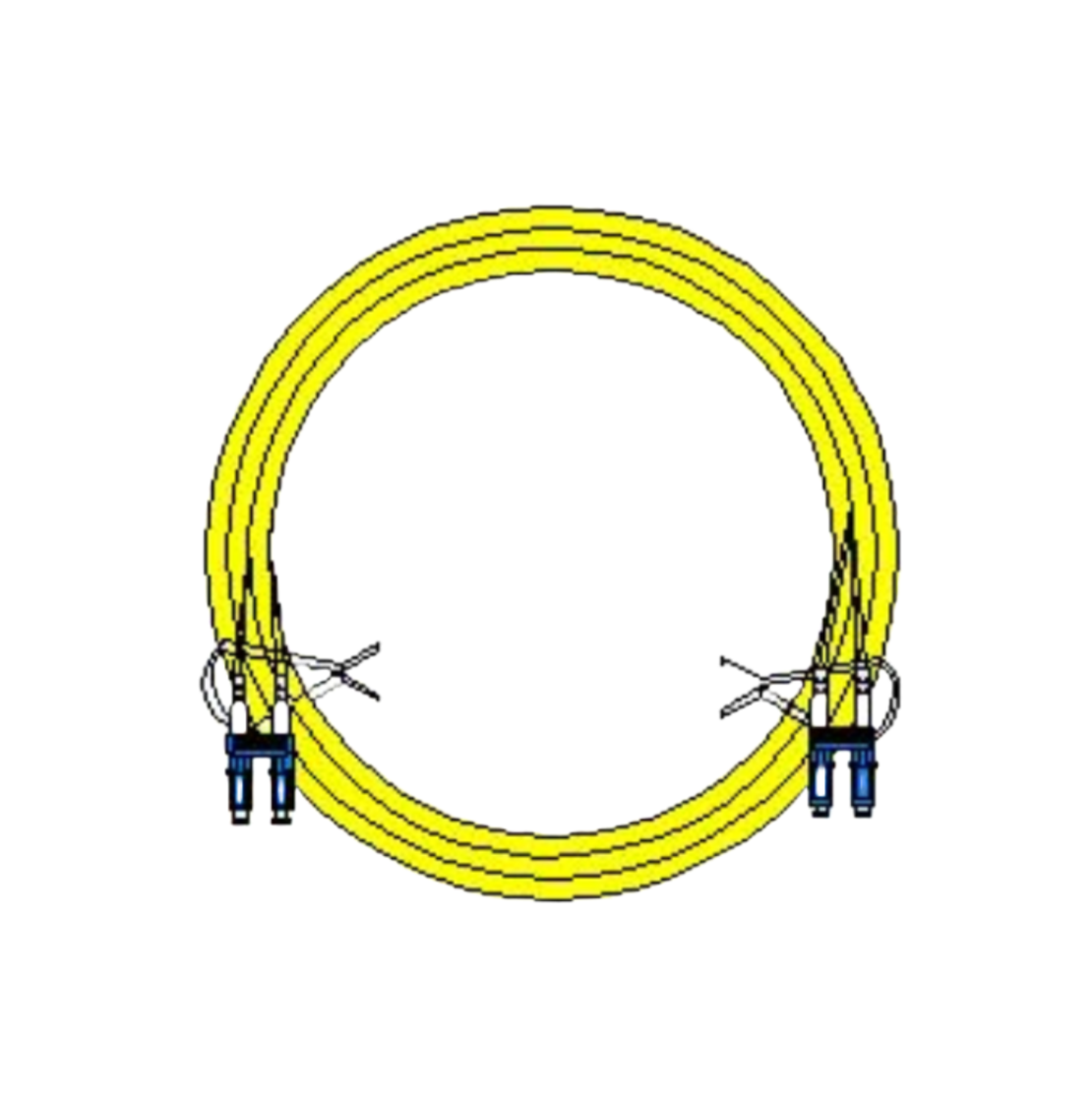

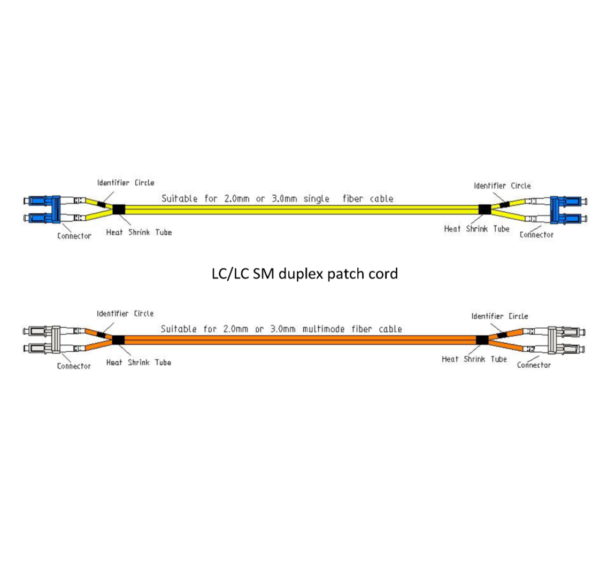

Fiber Optic Duplex Patch Cord LC-LC

Widely used to connect the trunk cable wiring devices
Suit for Single Mode or Multi Mode duplex cable
High quality connectors
Receive and transmit legs clearly indicated
Low insertion loss,High return loss. Good repeatability、Mutual thrust performance
Good temperature stability
Conform to the IEC 874-7、TIA/EIA568 – B – 3
CECC86115-80 industry standards

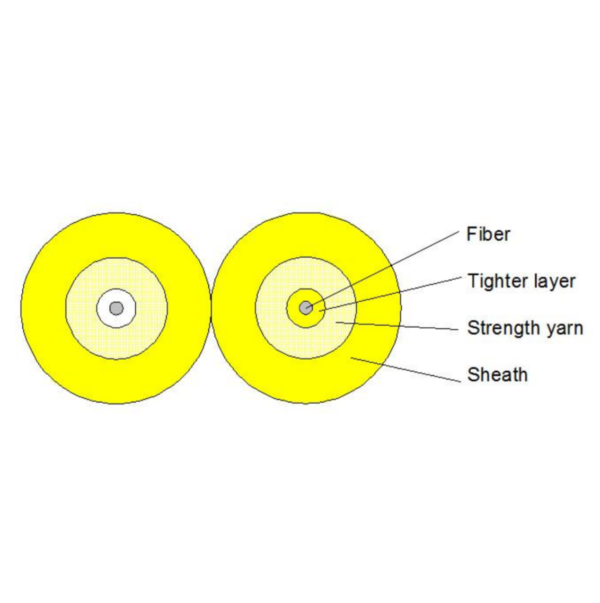

TIGHT BUFFER COLOR CODE

FIBER	Tight Buffer Color C		Outer Sheath
Single Mode	White	Yellow	Yellow
Multi-Mode	White	Orange	Orange
10Gigabit Multi-Mod	White	Aqua	Aqua

Widely used to connect the trunk cable wiring devices Suit for Single Mode or Multi Mode duplex cable High quality connectors Receive and transmit legs clearly indicated Low insertion loss,High return loss. Good repeatability、Mutual thrust performance Good temperature stability Conform to the IEC 874-7、TIA/EIA568 – B – 3 CECC86115-80 industry standards

TIGHT BUFFER COLOR CODE
