| Specifications | Details |
|---|---|

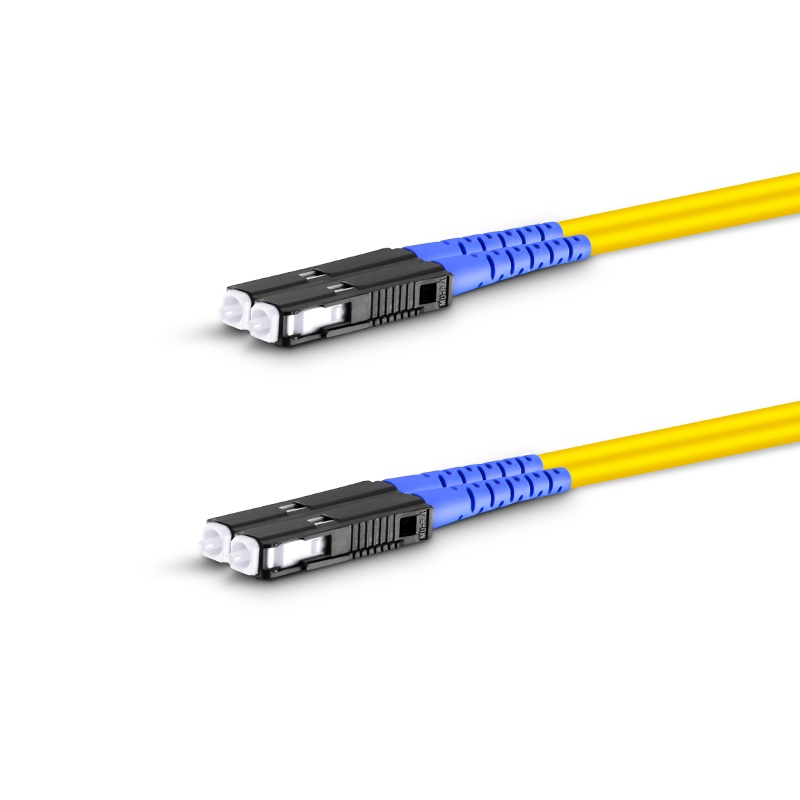

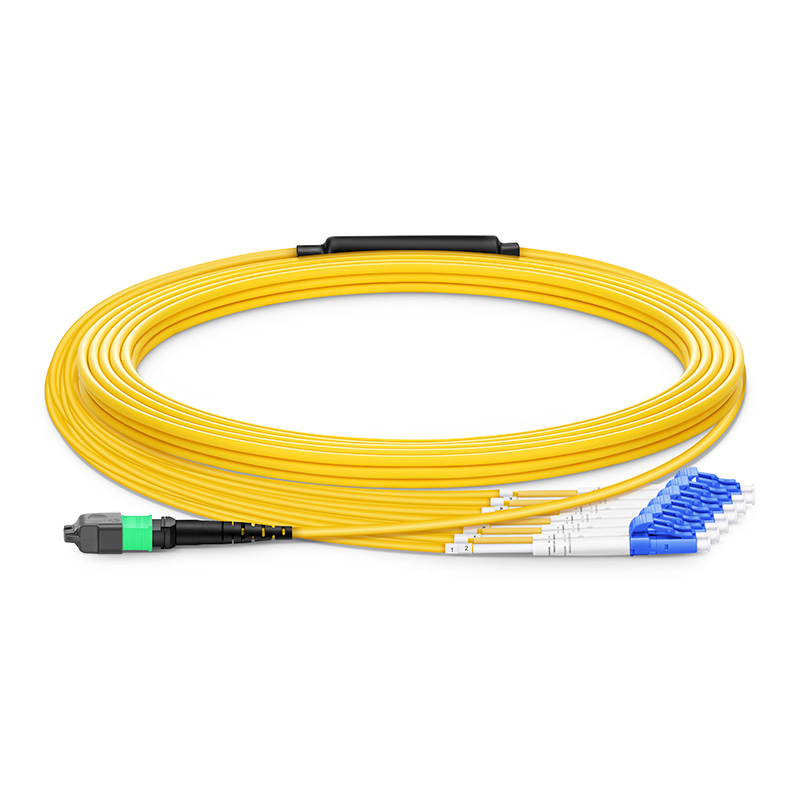

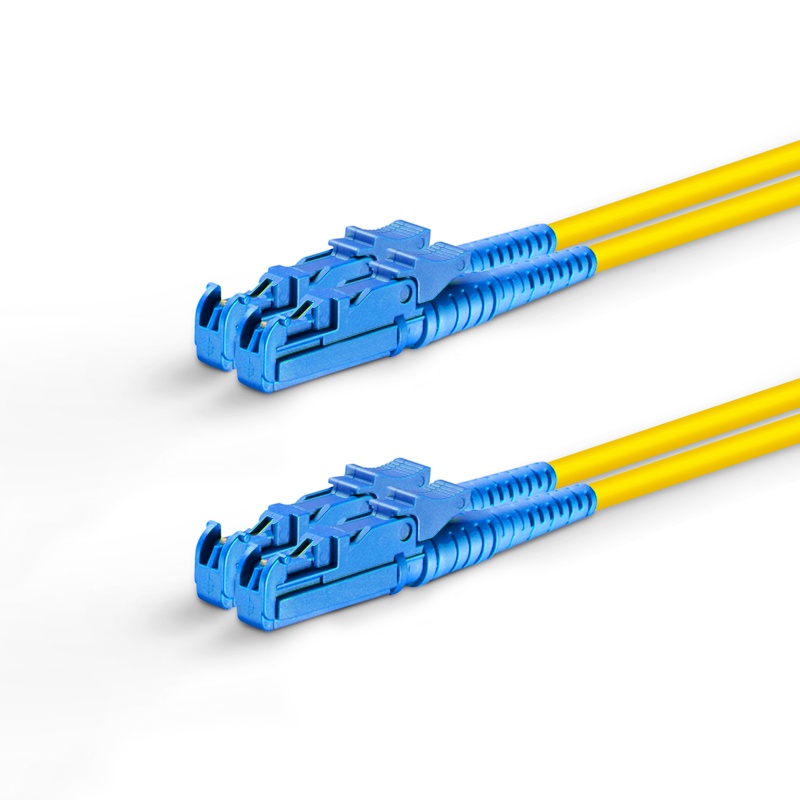

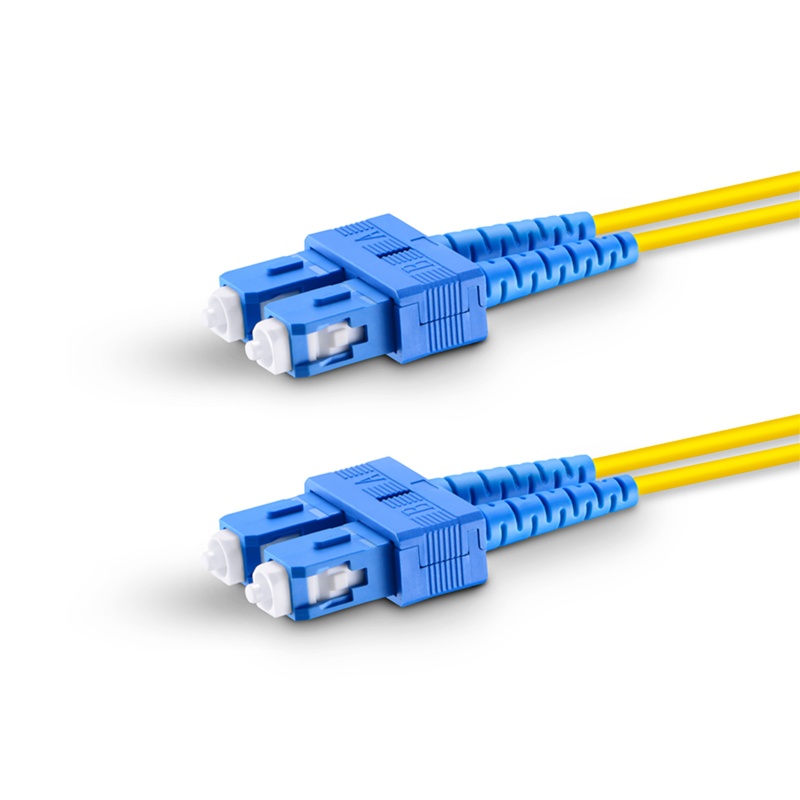

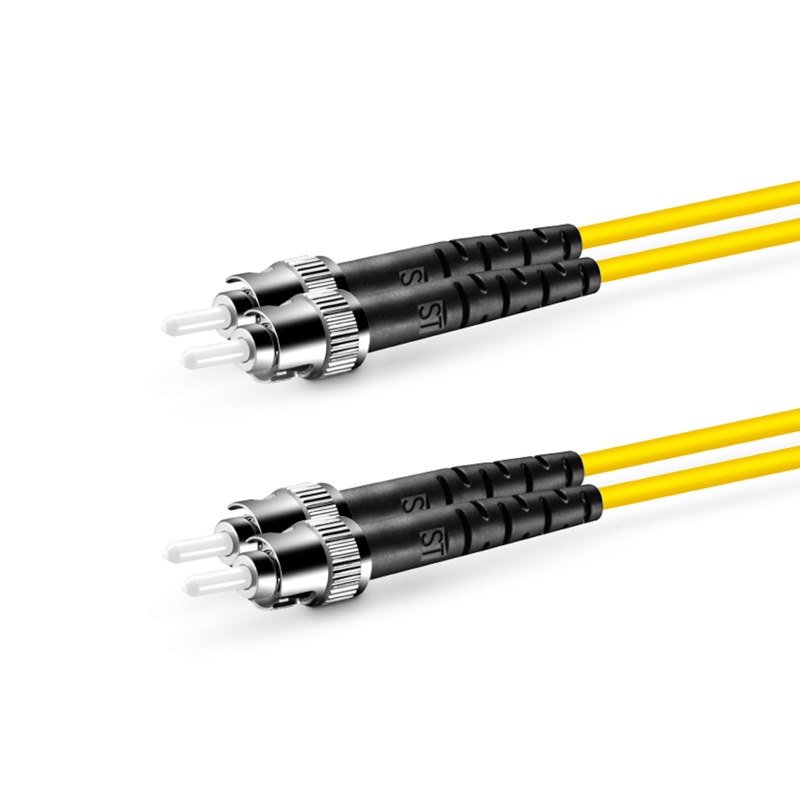

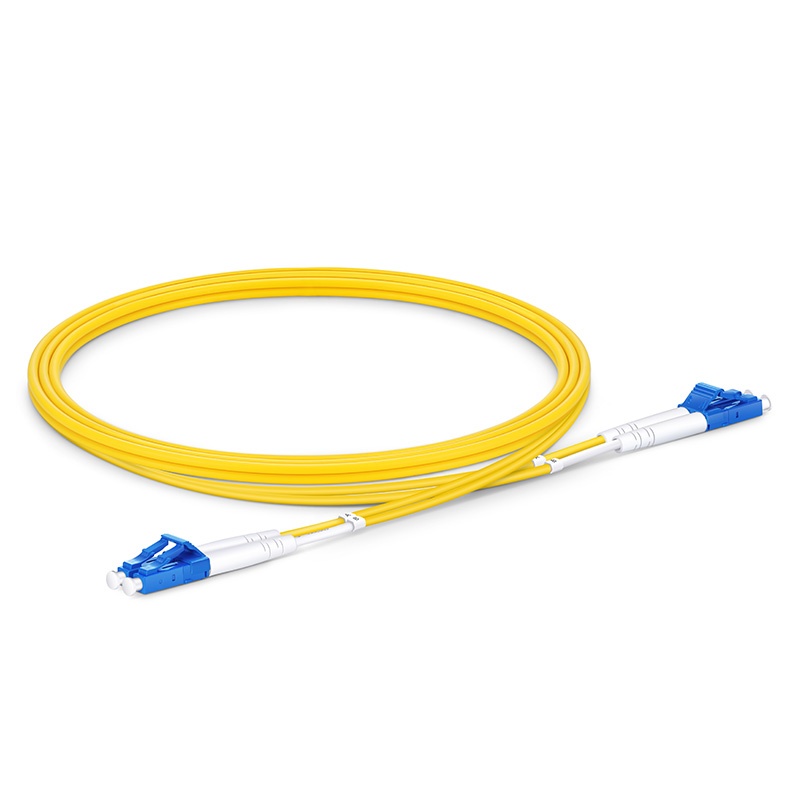

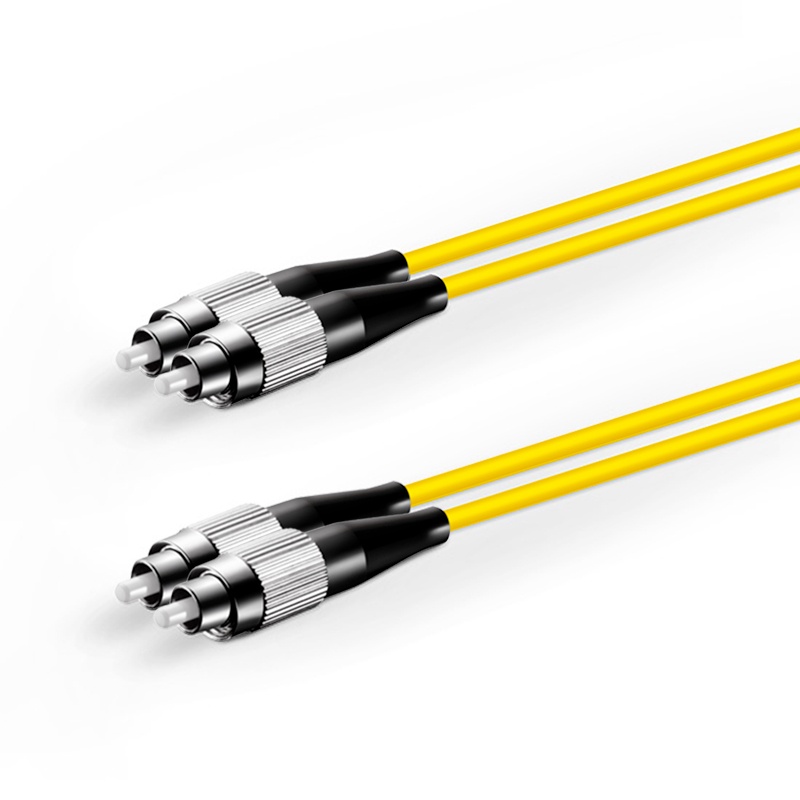

| Connector Type | LC/SC/ST/FC/LSH/MU/MTRJ |
| Polish Type | UPC/APC |
| Fiber Mode | OS2 9/125μm |
| Wavelength | 1310/1550nm |
| Insertion Loss (dB) | ≤0.3dB |
| Return Loss (dB) | UPC≥50dB, APC≥60dB (LC/SC/ST/FC/MU/MTRJ), UPC≥55dB, APC≥75dB (LSH) |
| Fiber Grade | G.657.A1/G.657.A2 |
| Minimum Bend Radius | 10/7.5mm |
| Attenuation at 1310 nm | 0.36/0.4 dB/km |
| Attenuation at 1550 nm | 0.22/0.25 dB/km |
| Cable Jacket | Riser (OFNR)/LSZH/OFNP |
| Cable Outside Diameter (OD) | 1.6/1.8/2.0/3.0mm |
